Welcome to Seistek. This site is a repository for personal projects primarily related to electronics, with the main focus being on precision time keeping and general metrology.



   PN3048 Phase Noise Measurement Software

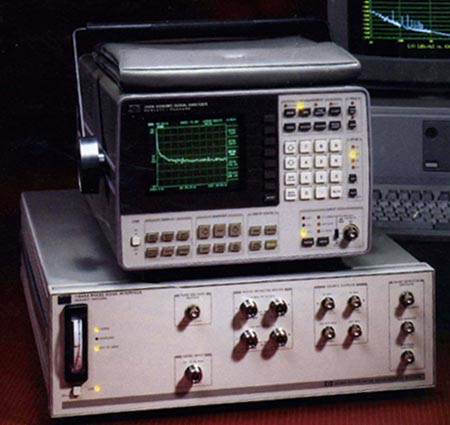

    HP11848A and HP3561A
PN3048 Phase Noise Measurement Software is a Windows program for measuring the phase noise of many different types of signal sources and two port devices using the HP11848A Phase Noise Interface and HP3561A Spectrum Analyzer. With these basic instruments, phase noise may be measured at offsets from the carrier of .01Hz to 100Khz. With the addition of an HP RF spectrum analyzer, such as the HP3585A/B, offsets out to 40Mhz may be measured.

The program has been under development for several years and at present supports several different types of phase noise measurement scenarios:
  • Phase noise using a phase locked loop
  • Phase noise without phase locked loop
  • Phase noise using an FM discriminator


Here is a screenshot of the program with several phase noise measurements from various different  low noise oscillators.
